Paper Carton Erecting Machine

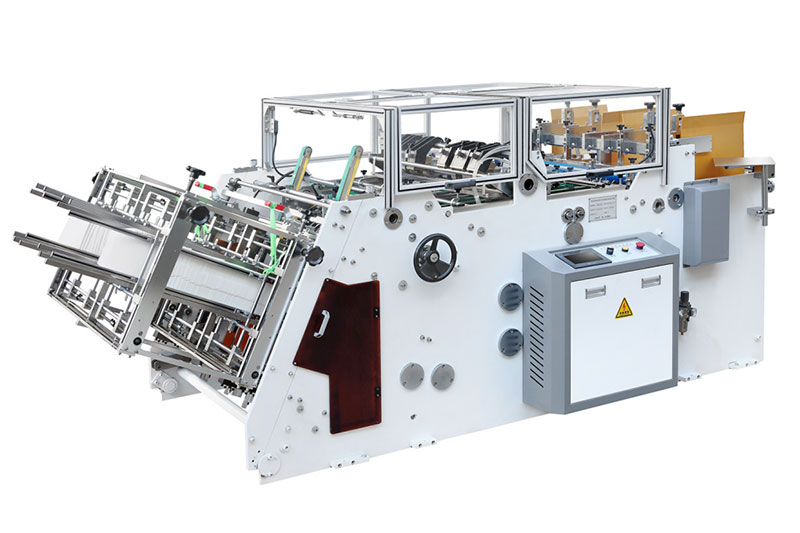

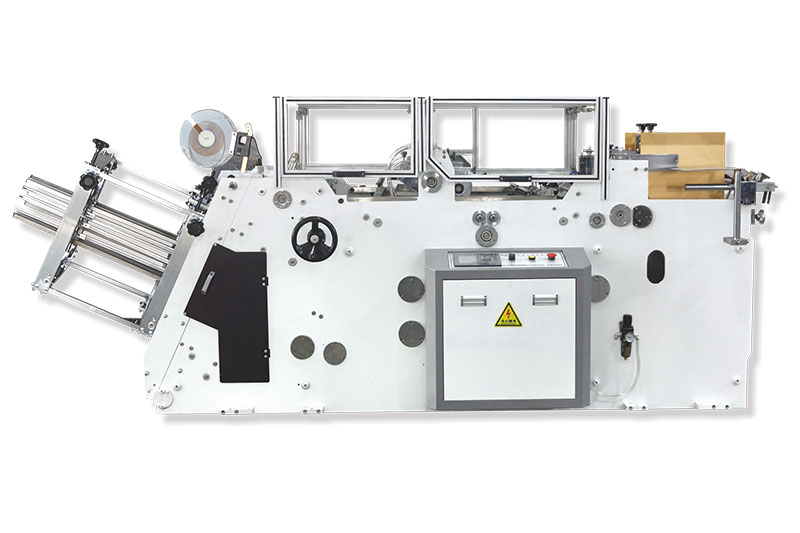

HBJ-D1200 (double lanes) Paper carton erecting machine

HBJ-D1200 (double lanes) Paper carton erecting machine

Product Description

Description
HBJ-D is an ideal choice to produce hamburger boxes, French fries box, food tray, lunch box,Chinese noodle box, hot dog box, etc. It adopts micro-computer, PLC, alternating current frequency converter, the vacuum-sucking paper feeding, auto gluing, automatic paper tape counting, and chain drive. All of these main parts and electric control system adopts imported brand to guarantee steady working, precise positioning, smooth running, safety and reliability operation It can make more than 10 types boxes. If the box is not in blow list, please show us your sample.

Technical Specifications

Type HBJ-D800   HBJ-D1200
Production capacity   50-180 pcs/min 80-320pcs/min
Suitable Material:  200-600gsm card paper,PE coated paper, kraft paper, corrugated paper
length:  L100-450mm,degree:5°-40°
width:  B100-600mm
Height H15-200mm
B100-400mm
Height H15-200mm
Total Power:  5KW  6.5KW
Total Weight:   1.8T 2.5T
Overall Dimension:   3600 x1500 x 1700 mm 3600 x 1800 x 1700 mm
