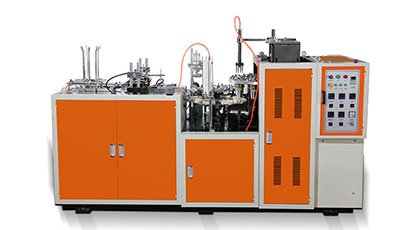

ZB-D Automatic Paper Cup Forming Machine

ZB-D Automatic Paper Cup Forming Machine

Product Description

ZB-D paper cup machine is improved based on the normal chain driving type. This machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, bottom punching, heating, rolling, rimming, rounding and tripping. It is an idea equipment for producing drinking cups,market cups, coffee cups, advertising cups , etc. It is widely used for hot drink and beverage.
If you need double pe coated paper cups or paper gram higher 250g/m2, we recommend you to use Ultrasonic paper cup machine, it can produce single pe coated paper cups and double pe coated paper cups.

Technical Specification

Type: ZB-D
Cup size: 3-12oz(different size mold exchanged)
Suitable paper material: 150-380g/m2 (single or double PE-coated paper)
Capacity: 50-60pcs/min
Power source:: 220V、380V 50HZ(please inform us your power in advanced)
Total power: 4KW
Weight: 2200KG
Package size: 2500 x 1400 x 1700 mm
Working Air Source: Air pressure 0.4Mpa;Air out-put:0.6m3/min
ZB-D-Automatic-paper-cup-forming-machine(vertical-shaft-and-gear-driving)-2 A:top diameter:
Min 45mm---Max 90mm
B:bottom diameter
Min 35mm---Max 75mm
C:total height
Min 30mm---Max 115mm
D:bottom knurling depth
Min 4mm---Max 12mm
E:rim diameter
    Usually Φ2.5---Φ3



If you have any enquiry about quotation or cooperation,please feel free to email us or use quiry form,Our sales representative will contact you within 24 hours.Thank you for your interest in our products
