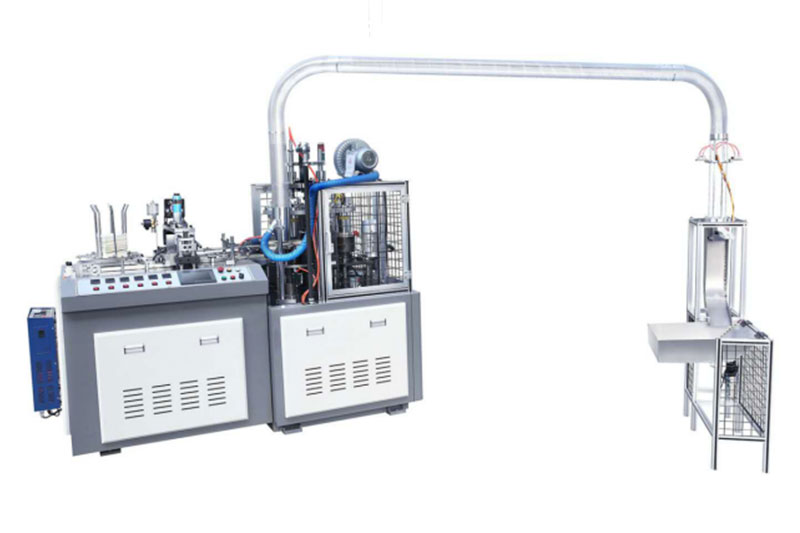

ZSZB-D Automatic medium speed paper cup forming machine

ZSZB-D Automatic medium speed paper cup forming machine

Product Description

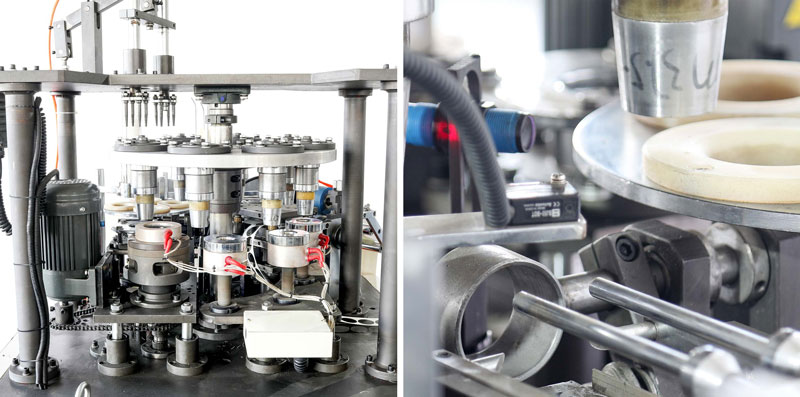

ZSZB-D model automatic paper cup forming machine is the latest model which use the high level technical to improve,use the interval paper feeding,ultrasonic(heater)sealing,robot hand cup body transfer,oilling,bottom punching,bottom folding,pre-heating,knurling,cup collection to form the cups,whole machine use the single shaft driving system,open cam system, and gear driving,automatic oil lubrication, machine use the sensor alarming system, it is a idea machine based on old model(three plates chain driving machine model)

Technical Specification

Type: ZSZB-D
Cup size: 2.5-12oz(different size mold exchanged)
Suitable paper material: 150-380g/m2 (single or double PE-coated paper)
Capacity: 70-85pcs/min
Power source:: 380V 50HZ(please inform us your power in advanced)
Total power: 8KW
Weight: 2200KG
Package size: 2800 x 1600 x 1800 mm
Working Air Source: Air pressure 0.4Mpa;Air out-put:0.6m3/min

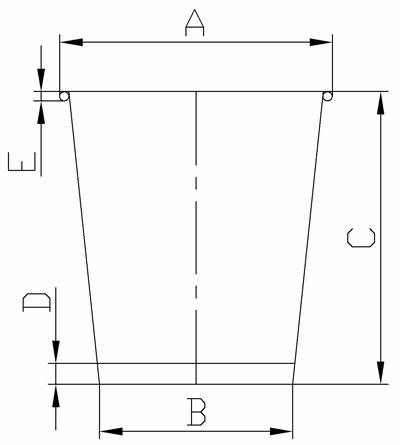

ZB-D-Automatic-paper-cup-forming-machine(vertical-shaft-and-gear-driving)-2 A:top diameter:
Min 45mm---Max 90mm
B:bottom diameter
Min 35mm---Max 75mm
C:total height
Min 30mm---Max 115mm
D:bottom knurling depth
Min 4mm---Max 12mm
E:rim diameter
    Usually Φ2.5---Φ3
