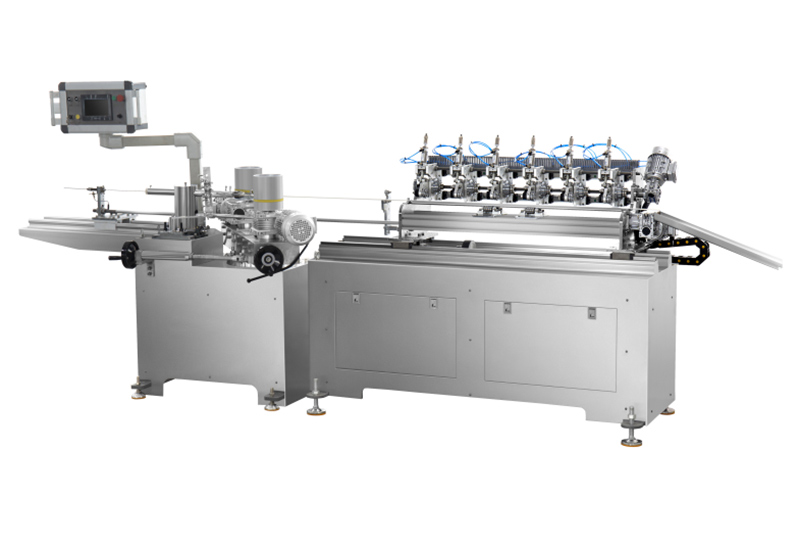

ZG-70 high-speed paper straw machine, including paper unwinding, gluing, twisting, cutting, conveying and collecting units, equipped with muti round knife to cut off paper drink straw on line. It is suitable for making 6-12mm paper drink straw.
Specification
|
Number of roller |
2-4layer |
|
Tube outer diameter |
6-12 mm |
|
Tube wall-thickness |
0.3-1 mm |
|
Cutting Length |
120-800mm |
|
Winding speed |
0-70m/min |
|
Cutter |
6 sets |
|
Cutting Speed |
197mm length 6 diameter paper straw, 280pcs/min |
|
Glue Method |
Single and double sides |
|
Power |
7kw |
|
Power Supply |
380V /3phase,220V /3phase（with transformer） |
|
Speed control |
Variable Frequency |
|
Working Air Pressure |
0.6Mpa |
|
Measurement |
5600*1600*1750mm |
|
Working Space |
11000mm * 6000mm*2000mm |
|
Weight |
1300kgs |
|
Operator |
1-2 person |
Spare Parts
|
Driving system |
|
|
Main motor |
1.5KW x2 |
|
Servo motor |
Yaskawa 1.5KW |
|
Frequency inverter |
Schneider 3.7 KW |
|
Control system |
|
|
PLC controller |
China Research |
|
Touch screen |
Weinview |
|
Pneumatic Components |
Airtec |
|
Electric Components |
Schneider |
|
Equip device |
|
|
Twist Belts |
1 |
|
Core mould |
2 |
|
Tool box |
1 |
|
Spare Knife |
5pcs |
